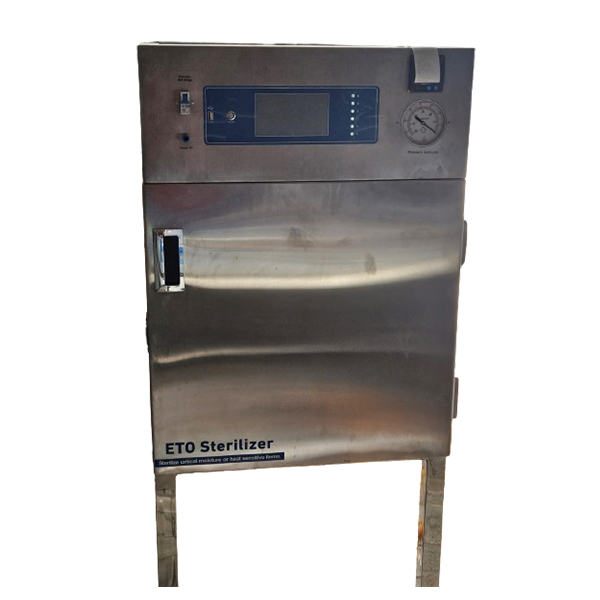

Ethylene oxide sterilizer suitable for sterilization of Catheters Disposable. The unit is made out of stainless steel 304 chamber. Stainless steel back plate as well as S.S. door. The unit is individual valves for exhaust, allowing gas in the chamber and for vacuumising. The unit is having vacuum pump, chamber heating and control system. Table top model suitable for 2 Nos. Sterilizing Baskets. The Unit is havingfacia panel. All accessories pump etc. are enclosed with stainless steel cover. Gauge sand controls are provided in the facia panel. This model is specially de-signed for hospitals and Research Lab. The unit is suitable for 10:0E0:CO2 or 12:88E0:F-12
In FULLY AUTOMATIC, the sterilization is a one-touch operation, where the operator loads the material in the trolley provided along with the machine, closes the door and then presses the start Button to initiate the cycle; the cycle then continue on its own and after sterilizing and aerating the load; informs the operator that cycle is complete. Once stored this program can not be modified with invoking the password command.
A separate set of operating switches are provided to enable the operator to take a cycle in manual.
All sensor linked to the automation, reliability and failsafe operation. Scree on Control panel indicates specific phase during the operation. Every cycle there is a leak test period; which checks the leakage and aborts the cycle if there is a leakage in the system. Negative chamber pressure ensures that gas can not escape into operating Area Locked door sensor dui ingcycle Constant watch over entries and break diagnostic from automation, which warn stheoperator, by means of message on indicator and buzzer. Cycle completion record is shown on the printout. Chamber and cabinet made of high grade stainless steel. PLC display 7" colour touch screen. Control System provides Strict control of vacuum, chamber temperature, exposure/aeration time.Three degassing cycles, before aeration starts, to enhance removal of residual EO.
| Model no. | MLT-M1 | MLT-M2 | MLT-M3 | MLT-M4 | MLT-M5 |
|---|---|---|---|---|---|
| Size of Inner Chamber(mm | 250 x 300 x 500 | 300 x 300 x 600 | 300 x 300 x 900 | 320 X 320 X 1200 | 350 x 350 x 1200 |
| Capacity | 35 ltr | 54 ltr | 81 ltr | 125 ltr | 150 ltr |
