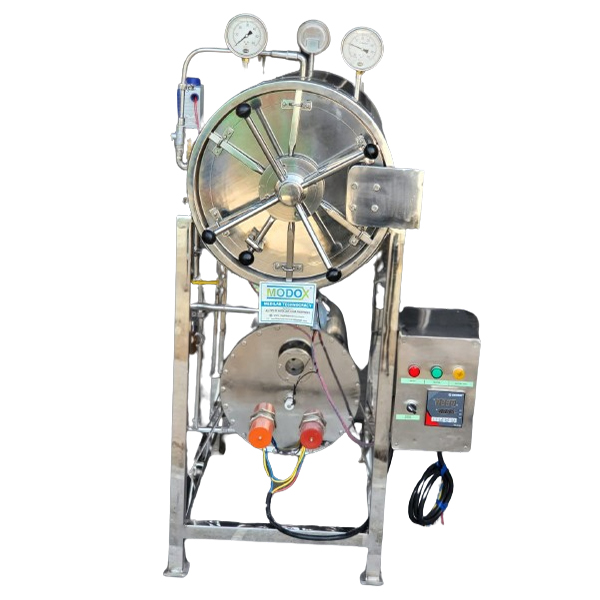

Horizontal Autoclave Manufacturers

Description
  • The inner/outer chamber, steam jacket and boiler are made of heavy gauge SS 304/316 with leak proof argon arc welding.
  • The space between the outer chamber and steam jacket is filled with glass wool to minimize thermal losses.
  • Hydraulically tested to withstand 2.5 times the working pressure.
  • Steam boiler is fitted with water level indicator, pressure gauge, low water cut off device and automatic pressure control devices. Fitted with safety valve as a safety device.
  • Drain valve is fitted at the side bottom for easy draining/clearing.
  • This affords a complete safety to the working personnel against explosive opening.
  • Two separate valves are provided for evacuating steam from inner chamber and jacket as and when desired.
  • The chamber discharge line is fitted with a moisture trap to absorb the condensate automatically thus preventing moistening of the loaded material to be sterilized.
  • An automatic vacuum breaker is fitted to all units as a standard accessory in order to break vacuum in case of steam condensation.
  • The flanged immersion type heating element made from a very high grade material provide fast formation of pressure in the system and are protected through a electric low water level cut off device.
  • All sterilizers are provided with triple safety features through a “Piezostate” (automatic pressure control system) and a spring loaded safety valve fitted to the boiler/steam generator.
  • The chamber is fitted with spring loaded safety valve and a dead weight release valve.
  • To work on 220/230 or 440 volts, 3 phase, 50 Hz AC supply.
Model No. MLT-J1 MLT-J2 MLT-J3 MLT-J4 MLT-J5 MLT-J6 MLT-J7
Inner Dimension (mm) 400 x 600 400 x 900 400 x 1200 500 x 900 500 x 1200 600 x 1200 600 x 1500
Inner Dimension (Inches) 16 x 24 16 x 36 16 x 48 20 x 36 20 x 48 20 x 48 24 x 60
Capacity 75 Litres 115 Litres 150 Litres 178 Litres 235 Litres 340 Litres 430 Litres
Heater Load 6 KW 6 KW 9 KW 9 KW 12 KW 12 KW 12 KW
Technical Specification
  • Gasket: made of joint less silicon rubber.
  • Exhaust pressure: manual through the exhaust valve
  • Sterilizing pressure: 1.2 to 1.5 kgf/cm2 (15 to 30 psi) at 121o/134oC.
  • Operating pressure: from 15 psi to 20 psi
  • Pressure gauge: 0.2.1 kgf/cm2 (30 psi)
  • Tubular stand and supporting ring: made of mild steel or stainless steel.
  • Pressure Vessel= Stainless Steel
  • External Wall=SS 202/304 Grade Stainless Steel
  • Top Lid=SS 202/304/316 Grade Stainless Steel
Optional
  • Automatic pressure cut off switch
  • Digital temperature timer indicator cum controller
  • Multiport Valve
  • Automatic self locking system
  • Automatic low water cut off switch
  • Moisture trap
  • Fully automatic PID purging system
  • Fully automatic PID purging system
