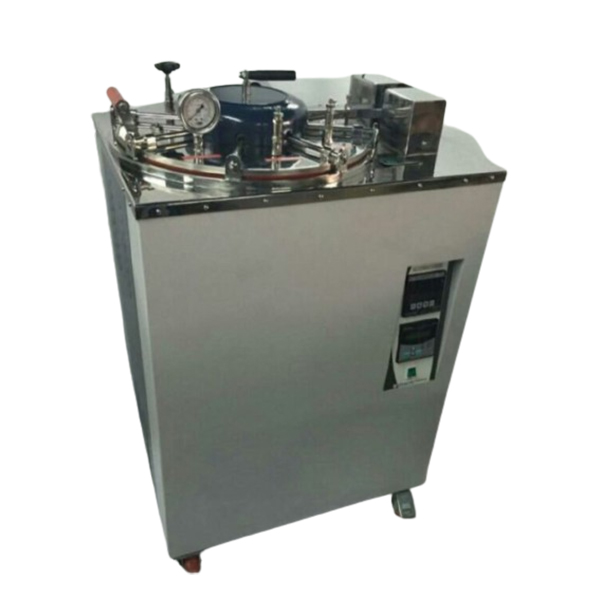

Single Lever Autoclave

Fully Automatic Autoclave

• Double walled in construction with Inner body stainless steel 304.
• Outer body stainless steel 304/Powder coated.
• The lid is made of thick stainless-steel plate and can be sealed by a silicon gasket jointless.
• A unique single lever lock ensures easy lifting & closure of Autoclave door without leakage of vacuum & Pressure.
• The Temp. Is being controlled by Microprocessor based PID Temp Controller with PT-100 sensor.
• The cycle begins with press of start switch for fully automatic operation.
• Automatic steam and air exhaust at end of cycle through solenoid value and automatic pressure control switch.
• All Internal joints are argon arc welded, ground and polished to avoid steam and pressure leak.
• Specially designed heaters reduce power consumption.
• Removable SS rod type basket is provided.
• Water low level Alarm indication and heater cut of facility.
• Lid is equipped with pressure gauge range 10 to 30 PSI, safety valve and exhaust valve.
• Safety valve, Steam release Exhaust Valve, vacuum breaker - for more safety.
• Most useful to sterilizer lab glassware, plastic Tubing, Liquid in sealed glass containers and many more uses.
