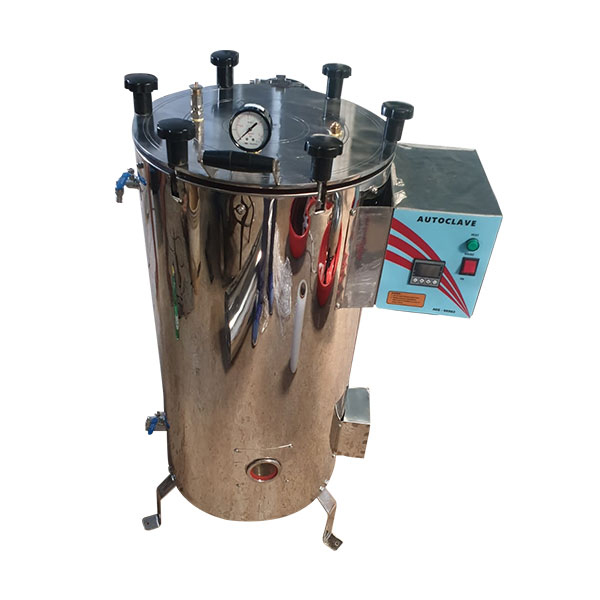

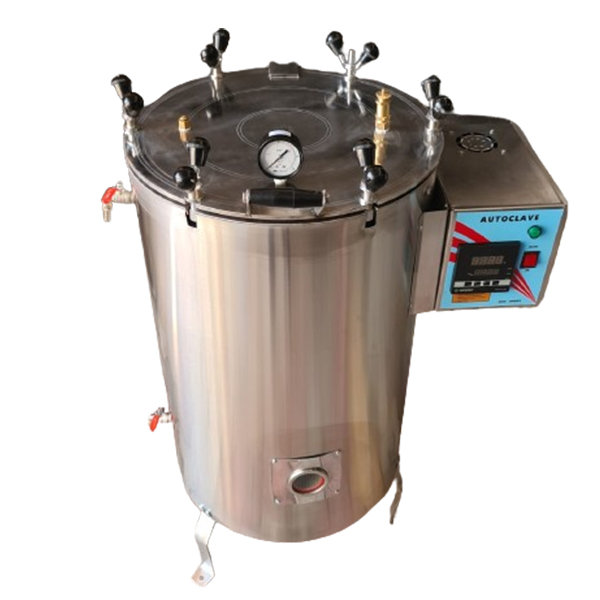

Vertical Double Walled Wing Nut Autoclave (Modox)

Vertical Double Walled Wing Nut Autoclave

Description

Inner chamber, outer chamber & support ring are fully made of stainless steel.
Heaters cover stand and carrier/bucket are made of stainless steel.
Lid made of thick machined stainless steel plate.
Brass knobs ensures user safety and safe locking.
Lid is fitted with pressure gauge, spring loaded safety valve, double safety valve, manual exhaust valve, vacuum breaker as a safety device and water level indicator.
Drain valve facilitates easy cleaning of the chamber.
Moulded joint less silicon rubber gasket.
All internal joints are argon arc welded, ground and polished to give crevice free internals.
Miniature circuit breaker for mains on/off plus safety of control panel.
Industrial grade energy efficient heaters reduce power bill drastically.

Model No.	MLT-F1	MLT-F2	MLT-F3	MLT-F4	MLT-F5	MLT-F6	MLT-F7
Inner Dimension (Inches)	10 x 18	12 x 20	14 x 22	16 x 24	18 x 24	20 x 30	22 x 30
Capacity	22 Litres	35 Litres	52 Litres	75 Litres	96 Litres	148 Litres	178 Litres
Heater Load	2 KW	2 KW	3 KW	4 KW	4 KW	5 KW	5 KW

Technical Specification

Including

Optional

Automatic pressure control switch.
Automatic low water cut off system.
Microprocessor based digital temperature indicator cum controller with set value and process vale/digital timer.
Microprocessor based digital temperature indicator cum controller with set value and process value/ timer and purging on/off fully automatic.
Thermal Printer.
